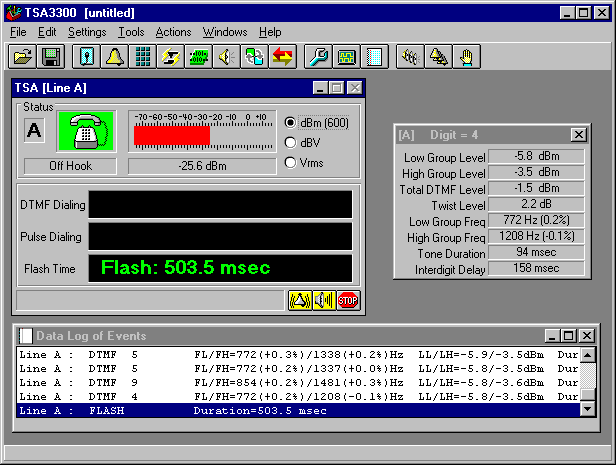

PC based signaling analyzer and generator for telephone devices. Analyzes DTMF and pulse dialing, flash timing. Generates programmable ringing signals, network tones, Type I and Type II Caller ID. Supports up to 4 telephone lines.

Features:

• Decodes DTMF dialing (level, frequency, duration, inter-digit delay)
• Decodes pulse dialing (PPS, make/break ratio, inter-digit delay)
• Measures hook switch flash timing
• Generates Type I and Type II Caller ID (on-hook and off-hook)
• Generates Visual Message Waiting signals
• Supports Telecordia (Bellcore), TIA, ETSI, BT, and CCA Caller ID standards
• Detects and measures CWD (Call Waiting with Disposition) signals
• Programmable network tone generation (dial, stutter, busy, ring back, and others)
• Programmable ringing generator (frequency, level, cadence, waveshape)
• Programmable telephone interface (feed voltage, loop current, line impedance, and line polarity)
• Generates single frequency tone and dual frequency tones, including DTMF
• Measures signal levels and distortion with optional C-message weighted filter
• Measures DTMF distortion
• Supports up to 4 independent telephone lines
• Event driven scripting language for automation and CO simulation

Downloads - Documents

Name	Version	Size
AI-330 Telephone Signal Analyzer Product information.	1.0	144 KB	Download
TSA3300 User Guide Operation of the TSA3300 software.	2.1	480 KB	Download

Downloads - Software

Name	Version	Size
TSA3300 Software Package	1.51b	977 KB	Download

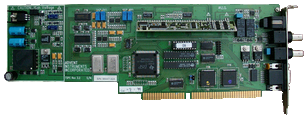

Windows NT, 2000, XP Driver Package Drivers needed to operate TSPC based hardware under Windows NT, 2000, and XP.	n/a	141 KB	Download
