Automated and programmable test system for evaluating the CAS (CPE Alerting Signal) detector used with Type II (off-hook) Caller ID signaling. Conforms to the industry standard Telecordia (Bellcore) SR-TSV-002476 document for performing talk-down, talk-off, and signal recognition testing. The AI-240 combines many of the keys elements required in a single product. This includes an ITU P.56 ASL (Active Speech Level) meter, parametric voice band equalizer, CAS/SAS tone generator, and data logger.

Features:

• Calculates de-rated talk-down performance
• Calculates de-rated talk-off performance
• Supports interleaved talkdown and talkoff testing
• Integrated ITU P.56 Active Speech Level (ASL) meter
• Programmable CAS and SAS tone generator
• Dual stage parametric voice band equalizer
• Programmable data logger for data capture and classification
• Synchronized time stamping
• Graphically view of the recorded data
• Export CAS pulse data for spreadsheet analysis
• Built in scripting language for complete testing automation
• Optional control of CD player containing the speech material
• External BNC connectors for audio monitoring and loop-through
• Digital I/O for external control and signaling
• View interm results while testing is in progress

Downloads - Documents

Name	Version	Size
AI-240 CAS Evaluation System Product information.	1.0	268 KB	Download

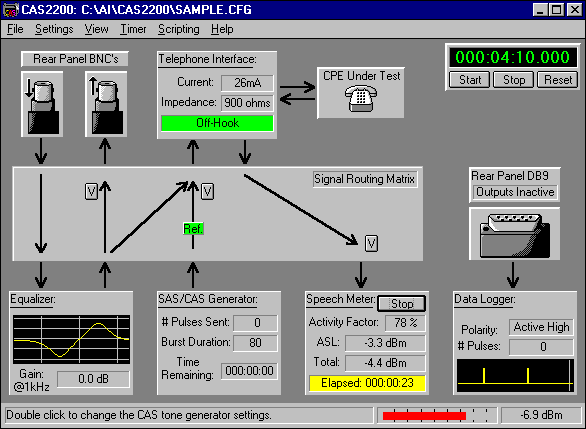

CAS2200 User Guide Operation of the CAS2200 software for performing talkoff and talkdown testing.	2.1	467 KB	Download

Downloads - Software

Name	Version	Size
CAS2200 Software Package	1.31	970 KB	Download
Windows NT, 2000, XP Driver Package Drivers needed to operate TSPC based hardware under Windows NT, 2000, and XP.	n/a	141 KB	Download
