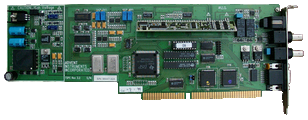

PC based Caller ID Signal Simulator for production or manufacturing environments. Generates FSK and DTMF signals for both Type I (on-hook) and Type II (off-hook) Caller ID. Software support for all major international standards such as Telecordia (Bellcore), TIA, ETSI, BT, CCA, NTT. A built in scripting language automates testing to various standards. Similar capabilities to the AI-150; however, the AI-120 software is limited to loading and executing configuration and script files only.

Features:

• Type I (on-hook) & Type II (off-hook) Caller ID Signal Generation
• Supports various international standards such as Telecordia (Bellcore), TIA, ETSI (European), BT, CCA, NTT (Japan)
• Generates both FSK and DTMF based Caller ID
• Single, Multiple, and Message Waiting data formats
• Programmable Channel Seizure, Mark, and Markout time
• Byte-wise and Bit-wise data editing capability
• Programmable FSK/DTMF frequency, level, twist
• Programmable Signal-to-Noise ratio and interfering tone
• Programmable line voltage, current, polarity, and impedance
• Programmable ringing generator level, frequency, and cadence
• Advanced impairment testing with FSK drop-outs, echo noise, line polarity reversals, and OSI generation
• Real time signal capture of CAS and ACK tones for analysis in both time and frequency domain
• External BNC connectors for audio monitoring and loop-through
• Digital I/O for external control and signaling
• Programmable scripting language for automated testing

Downloads - Documents

Name	Version	Size
AI-100 Series Caller ID Simulators Product information.	1.0	444 KB	Download
CID1500 User Guide Operation of the CID1500 software for TIA/Telcordia/ETSI FSK based Caller ID.	7.0	1.2 MB	Download
CID750D User Guide Operation of the CID750D software for DTMF based Caller ID.	1	362 KB	Download

Downloads - Software

Name	Version	Size

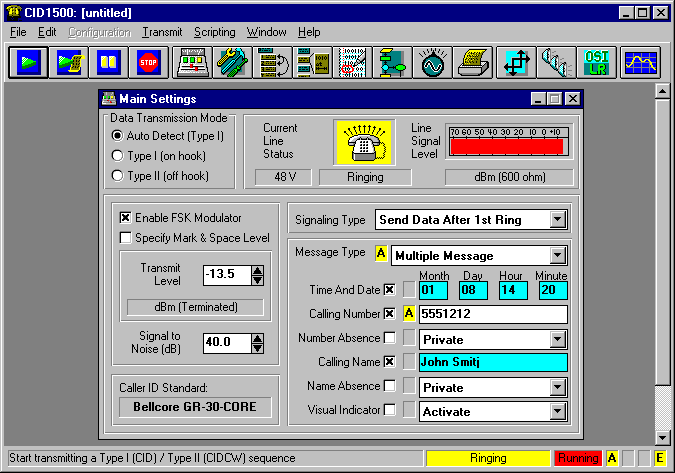

CID1500 FSK Caller ID Generation	2.71d	1.5 MB	Download
CID1500 FSK Caller ID Generation Patch for version 2.71d. This update supports the scripting IF InputA and IF InputB commands when using the AI-7280 Central Office Line Simulator. Additionally, the communication time-out has been increased to improve reliability with slower PC's, or PC's running multiple applications. To install, download the 'zip' file and copy its contents over the existing CID1500.exe file.	2.71f	246 kB	Download
CID750D DTMF Caller ID Generation	1.41	887 KB	Download
CID750D DTMF Caller ID Generation Patch for version 1.41. Updated version adds new script commands: WAIT, CALL, and RETURN. The number of script LOOPS is increased to 100 from 10. In addition the software now supports two ring bursts prior to sending the DTMF Caller ID data (used by some European PSTN exchanges). To install, download the 'zip' file and copy its the contents to the existing directory containing the CID750D.exe file.	1.51b	100 KB	Download
CID950N NTT Japan Caller ID Generation	1.01b	1.1 MB	Download
Windows NT, 2000, XP Driver Package Drivers needed to operate TSPC based hardware under Windows NT, 2000, and XP.	n/a	141 KB	Download
